The satellite-aided M4000 (abbreviated as "M4000") is a fiber-optic strapdown inertial measurement unit. This M4000 can operate in two modes: integrated navigation (GPS integration, log integration) and undamped mode, outputting information such as attitude, position, velocity, and heave.
⚪ Scope of application:
Marine surveying and mapping;
Surface and underwater warships;
⚪ External sensors compatible with the product:
GPS (single-ended or differential), with options for built-in GPS board or external GPS information input;
DVL Doppler sensor.
الجزء رقم ، :
M4000الطلب (موك) :

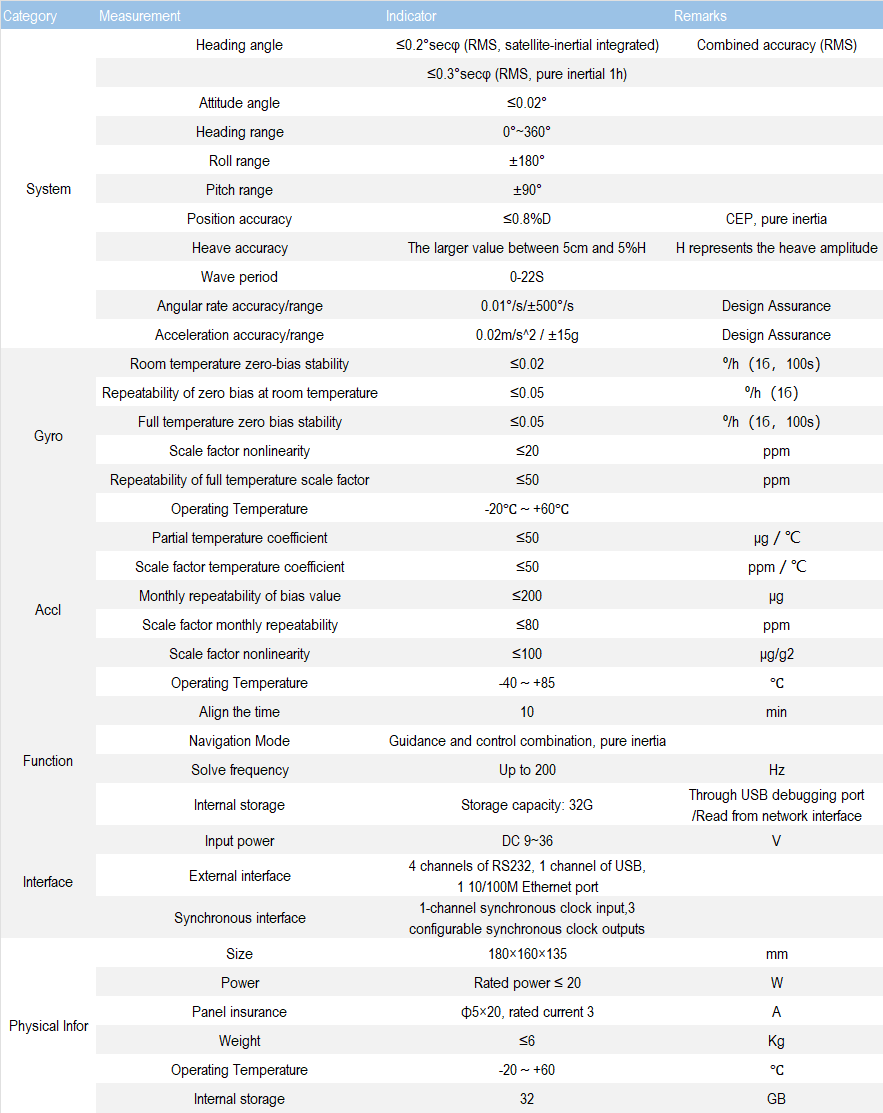

11. Product specification

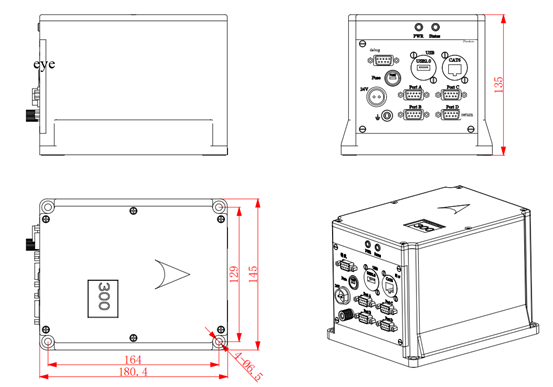

2. Product dimension
