Industrial Grade 9 Axis MEMS IMU Inertial Measurement Module with UART CAN Output
The U2600 series MEMS inertial measurement module is a highly reliable and cost-effective 9-axis MEMS inertial measurement module, which can be widely used in navigation, control, and measurement fields represented by robots, vehicles, ships, and drones. The U2600 series inertial measurement module integrates high-performance MEMS gyroscopes, MEMS accelerometers, and magnetic sensors within an independent structure, and incorporates attitude algorithms to provide real-time output of angular velocity, acceleration, and attitude information of the product.
رقم القطعة، :
U2600الطلب (الحد الأدنى للكمية) :
1Product Series and Parameters
| Parameter | U2600-A | U2600-B |
| Gyroscope | ||
| Measuring range (°/s) | ±300 | ±2000 |
| Full temperature zero bias (°/h, 3σ) | ≤300（XY），≤60（Z） | ≤300（XY），≤60（Z） |
| Zero bias stability (°/h, 10s smoothing, | ≤5（XY），≤3（Z） | ≤15（XY），≤10（Z） |
| After the temperature stabilizes | ||
| Zero bias instability (°/h, allan, typ) | ≤1 | ≤3 |
| Zero bias repeatability (°/h) | ≤5 | ≤15 |
| Angle random walk (°/√h) | ≤0.1 | ≤0.2 |
| Scale factor nonlinearity (ppm) | ≤100 | ≤300 |
| Cross-coupling (rad) | ≤0.001 | ≤0.001 |
| Bandwidth (Hz) | ≥200Hz | ≥200Hz |
| Accelerometer | ||
| Measuring range (g) | ±16 | ±16 |
| Full temperature zero bias (mg, 3σ) | ≤3 | ≤3 |
| Zero bias stability (μg, 10s smoothing) | ≤100 | ≤100 |
| Zero bias instability (μg, allan, typ) | ≤30 | ≤30 |
| Zero bias repeatability (ug) | ≤100 | ≤100 |
| Random speed walk (m/s/√h) | ≤0.03 | ≤0.03 |
| Scale factor nonlinearity (ppm, ±1g) | ≤300 | ≤300 |
| Cross coupling (rad) | ≤0.001 | ≤0.001 |
| Bandwidth (Hz) | ≥200Hz | ≥200Hz |
| Magnetometer | ||
| Range (Gs) | ±8 | |
| Resolution (μGs) | ≤200 | |
| Noise density (μGs) | ≤50 | |
| Bandwidth (Hz) | ≥200 | |
| Attitude Angle Accuracy | ||
| Pitch/Roll (Static) | ≤0.3 | ≤0.5 |
| Pitch/Roll (Dynamic) | ≤1 | ≤2 |
| Electrical/Mechanical Interface | ||
| Power Supply (V) | 5~36 | |
| Steady-state power (W) | ≤1 | |
| Startup time (s) | ≤2 | |
| communication interface | One channel for CAN, and one channel for UART | |
| Update rate (Hz, max) | 2000 | |
| Size (mm×mm×mm) | 25.3×22.4×10 | |
| Weight (g) | 12±2 | |
| Operating Environment | ||
| Operating temperature (℃) | -40~80 | |
| Storage temperature (℃) | -55~85 | |
| Vibration (g, RMS) | 20~2000HZ，6.06 | |
| Impact (g) | 1000/1ms | |
Production process

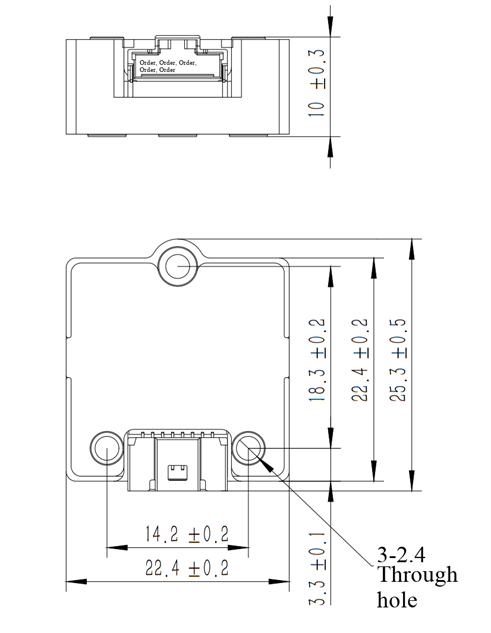

Product dimension
Application Scenarios
Across -40 °C to +80 °C, U2600’s full-temperature calibration/compensation enables single-axis rotational excitation to precisely measure and calibrate that axis’s gyroscope zero bias, temperature drift, and scale factor.
FAQ
The U2600 is an industrial-grade 9-axis MEMS inertial measurement module. It integrates MEMS gyroscopes, accelerometers, and magnetic sensors, and provides real-time output of angular velocity, acceleration, and attitude information.
Q2. What are the main features of the U2600?
The U2600 features full-temperature calibration compensation for gyroscope and accelerometer, UART/CAN output, built-in temperature sensor, built-in magnetic sensor, compact size, light weight, and an adaptive attitude algorithm.
Q3. What applications is the U2600 suitable for?
The U2600 is suitable for navigation, guidance and control, attitude control, automation control, robot control, gimbal stabilization, instrumentation, drone/vehicle/ship/boat attitude reference, mobile surveying and mapping, and vehicle positioning and orientation.
