FOG North Finder is a precision instrument that utilizes the Sagnac effect of fiber optic gyroscopes to accurately and autonomously determine the true north direction (geographic North Pole direction). It does not rely on external references such as GPS, astronomical observations, or known reference points, and is not affected by geomagnetic field interference, which is its core advantage.

Core Usage

(1)     Initial alignment and establishment of azimuth reference: This is the most important function. Provide initial orientation reference (true north direction) for various platforms or systems that require knowledge of their absolute direction.

(2)     Orientation maintenance and autonomous navigation: After knowing the initial position and direction, combined with sensors such as accelerometers, short-term high-precision autonomous inertial navigation can be performed, especially in GPS denied environments.

Main Application Scenarios

(1)            Military field (core applications):

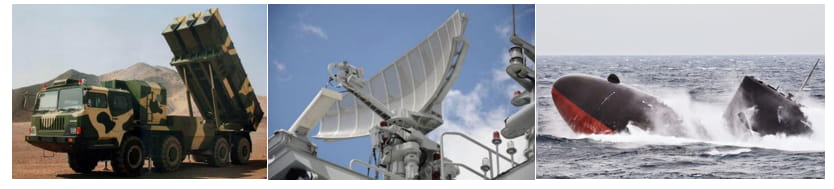

●Weapon system targeting and orientation: FOG North Finder provides fast and covert autonomous north finding for artillery, rocket launchers, and missile launch vehicles, establishing precise shooting reference directions, significantly reducing reaction time, and improving strike accuracy. Provide high-precision azimuth benchmarks for the main guns and fire control systems of tanks and armored vehicles. Provide rapid targeting for shore/ship to ship missile systems.

●Platform orientation and stability: FOG North Finder provides accurate azimuth reference for radar beam pointing of radar systems (ground, vehicle, and ship), ensuring target detection and tracking accuracy. Provide directional reference for the pointing of infrared, laser and other optoelectronic equipment in the electro-optical reconnaissance/aiming system. Provide fast alignment for large directional communication antennas.

● Initial alignment of vehicles/ships: FOG North Finder quickly determines the direction of travel reference for armored vehicles and self-propelled artillery when activated. Provide accurate initial orientation input for inertial navigation systems when submarines, surface vessels depart, float, or require recalibration.

(2)            Civilian field:

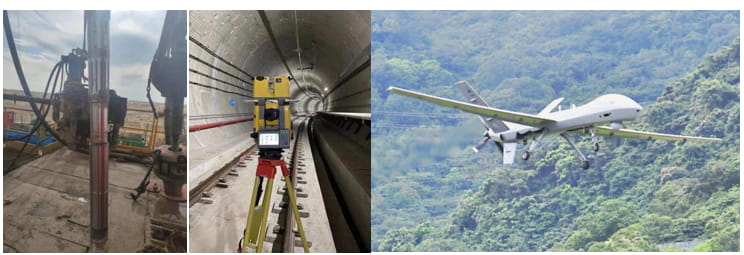

●  Petroleum geological exploration: In the measurement while drilling, FOG North Finder is installed near the drill bit to measure the azimuth angle (combined with dip angle) of the borehole in real-time and with high precision. It is a key technology for directional drilling and horizontal drilling, greatly improving drilling efficiency and oil and gas recovery. This is a very important application in the civilian field.

●  Geodetic surveying and precision engineering surveying: In areas without GPS signals or signal differences (tunnels, canyons, urban canyons, indoors), FOG North Finder provides high-precision azimuth benchmarks for measuring equipment such as total stations and laser trackers. FOG North Finder provides directional functionality for deformation monitoring systems in large-scale projects such as bridges, dams, and high-rise buildings. FOG North Finder can also establish a measurement control network independent of GPS.

●  Aerospace: In the initial alignment and navigation of large drones, FOG North Finder provides the drone with a fast and autonomous takeoff reference direction, and assists in navigation in the event of GPS failure. FOG North Finder provides directional functionality for ground testing and maintenance of aircraft, especially helicopters. FOG North Finder can also assist large satellite antennas in quickly and accurately pointing.

Why Does FOG North Finder Have Advantages In These Scenarios?

●  Strong autonomy: completely independent of external signals (GPS, geomagnetic), can work at any location and any time.

●  Strong anti-interference ability: not affected by electromagnetic interference or metal environments (compared to magnetic compasses), able to work normally in complex electromagnetic environments and near steel structures.

●  Fast startup: It can usually complete the search for north within seconds to minutes, much faster than traditional gyroscopic theodolites or astronomical observations.

●  High precision: Modern high-precision fiber optic gyroscope north finders can achieve north finding accuracy at the level of arcseconds or even sub arcseconds.

●  High reliability and long lifespan: All solid state design, no moving parts (compared to mechanical gyroscopes), shock and vibration resistance, low maintenance requirements.

●  Good environmental adaptability: able to work in a wide temperature range and harsh environments (such as high temperature and pressure underground in oil fields).

Related Products Suitable For The Above Applications

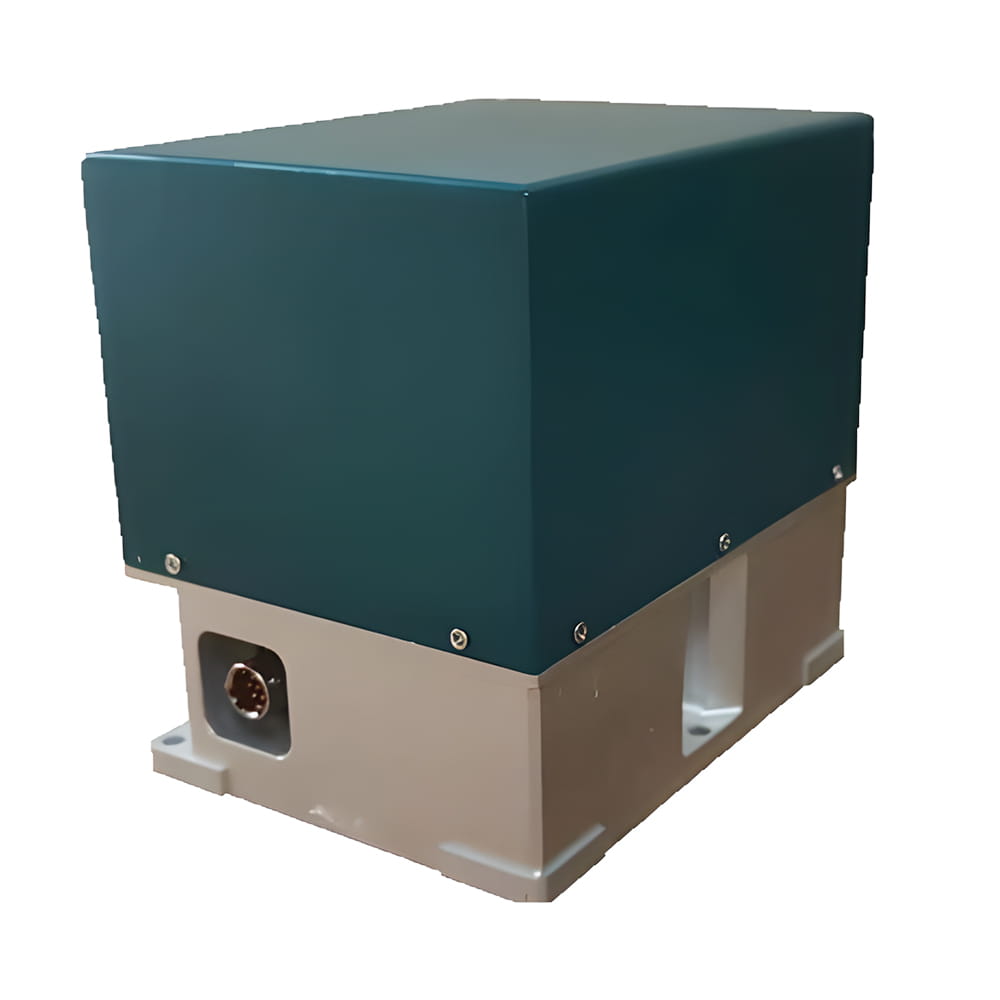

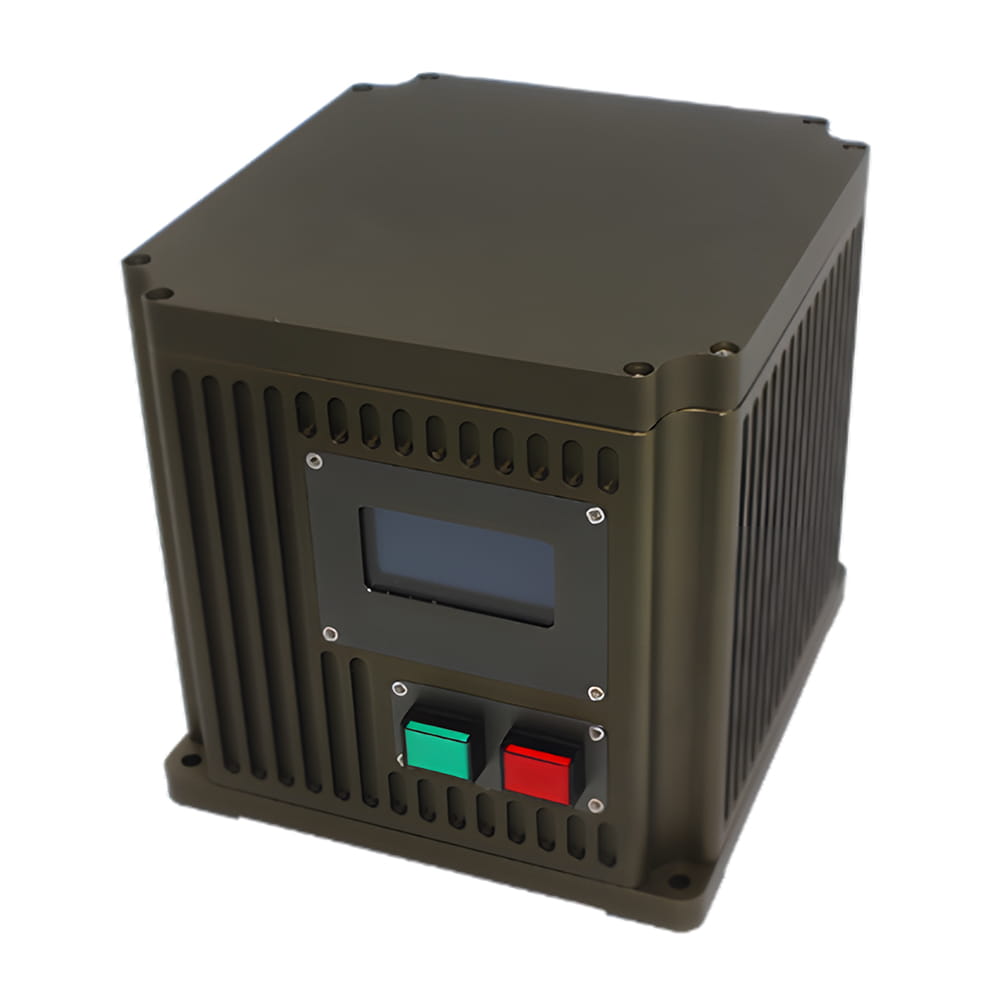

The series of FOG north finder produced by Micro-Magic Inc consists of fiber optic gyroscope, accelerometer, mechanical rotation control device, and embedded computer. It is a high-precision inertial instrument that can autonomously indicate azimuth by providing the angle between the carrier and true north without inputting latitude. This method based on fiber optic gyroscope and precision indexing eliminates dependence on external satellite signals (such as GPS) or known reference points, achieving true autonomous, covert, and all-weather north finding.

Conclusion

The core value of the fiber optic gyroscope north finder lies in providing a fast, autonomous, high-precision, and anti-interference true north direction reference. This makes it an indispensable key equipment in military weapon orientation, autonomous navigation, oil drilling, precision measurement, and other scenarios that require strict directional benchmarks and often cannot rely on external references or harsh environments. With the continuous advancement and cost reduction of FOG technology, its application in civilian fields is rapidly expanding, especially in the fields of autonomous driving, robotics, and high-end measurement.
