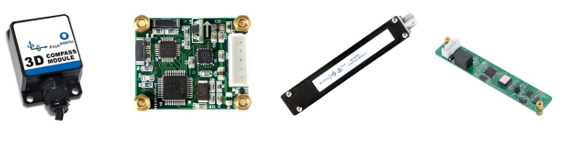

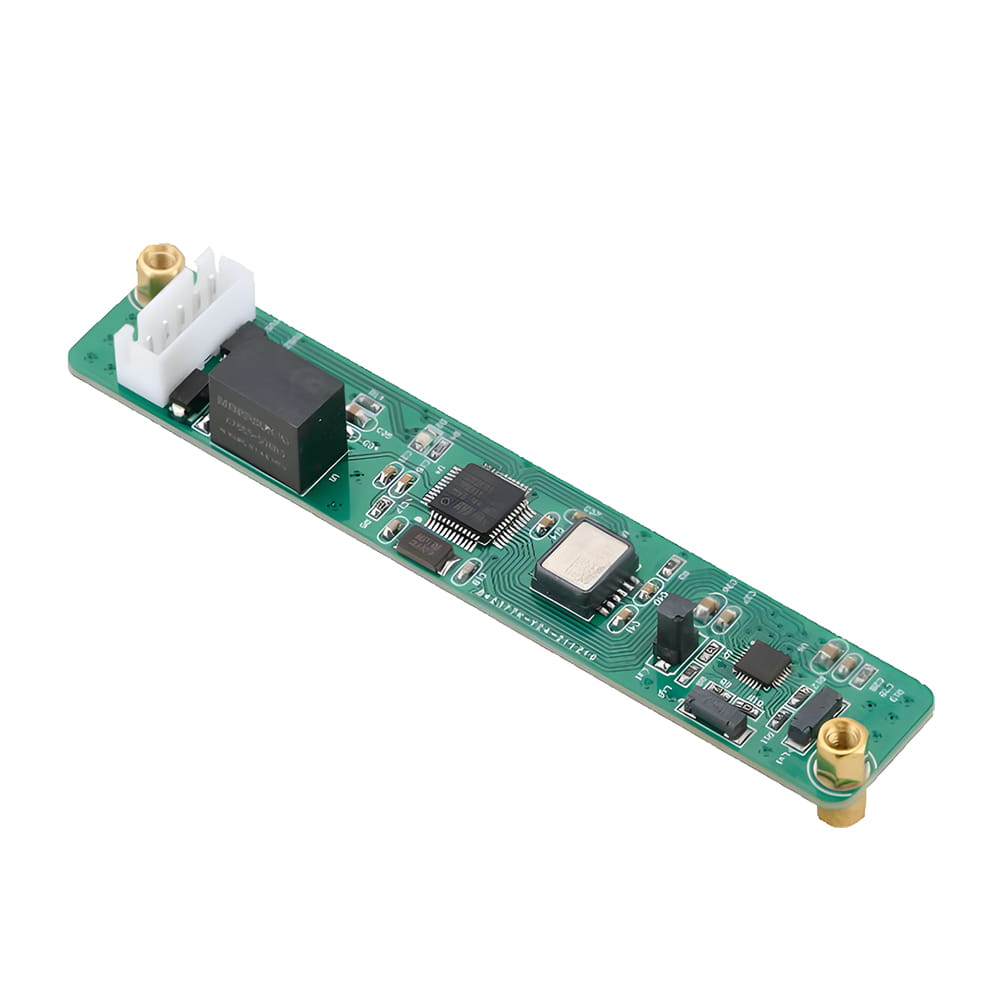

The 3D electronic compass is the core sensor component for achieving spatial orientation and attitude perception in modern AR/VR systems, and its technology is based on multi-sensor fusion for complex systems. This device can measure the absolute direction of the equipment in three-dimensional space in real time by integrating three-axis flux gate sensors, three-axis MEMS accelerometers, and/or three-axis gyroscopes. The flux gate sensor is responsible for detecting the components of the Earth's magnetic field vector on three orthogonal axes, the accelerometer senses the direction of gravity to determine pitch and roll angles, and the gyroscope provides angular velocity information for dynamic attitude compensation. This multi-sensor architecture enables electronic compasses to maintain heading accuracy in complex motion states, providing a stable directional reference for AR/VR applications.

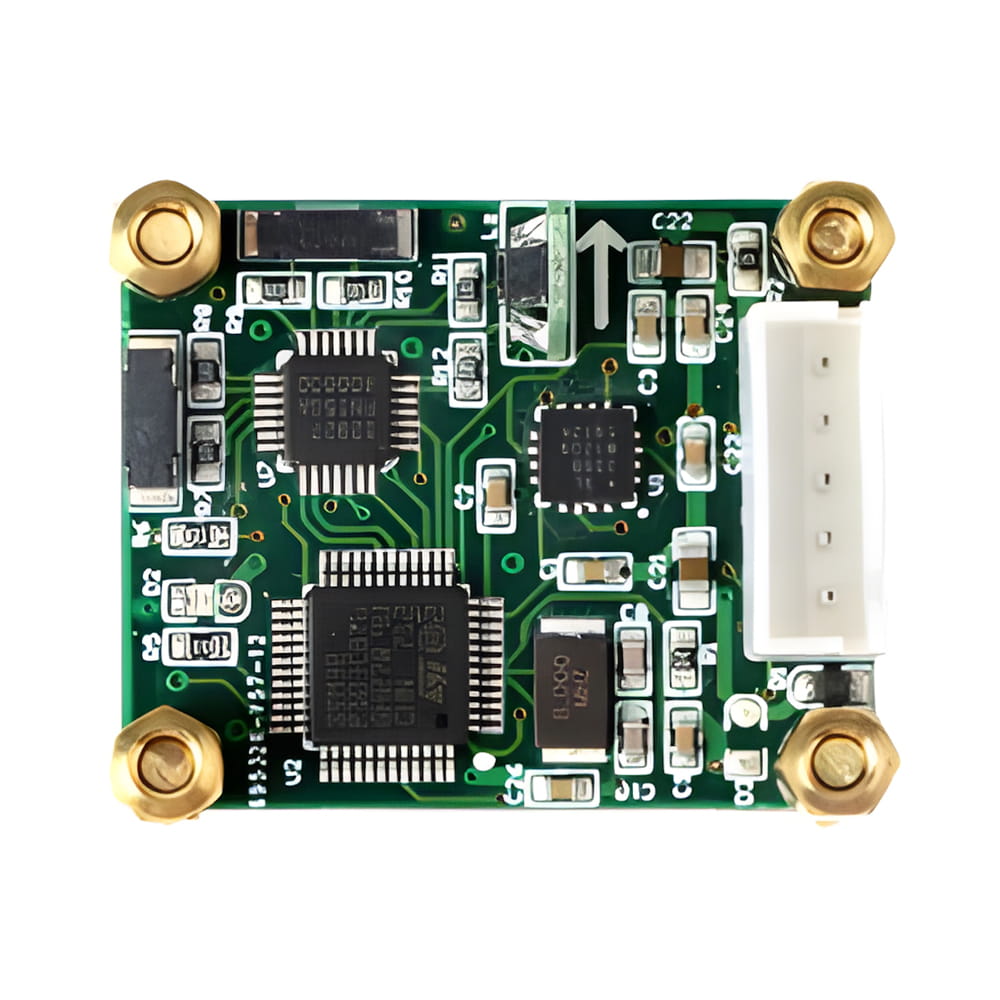

Key Technical Characteristics and Performance Parameters

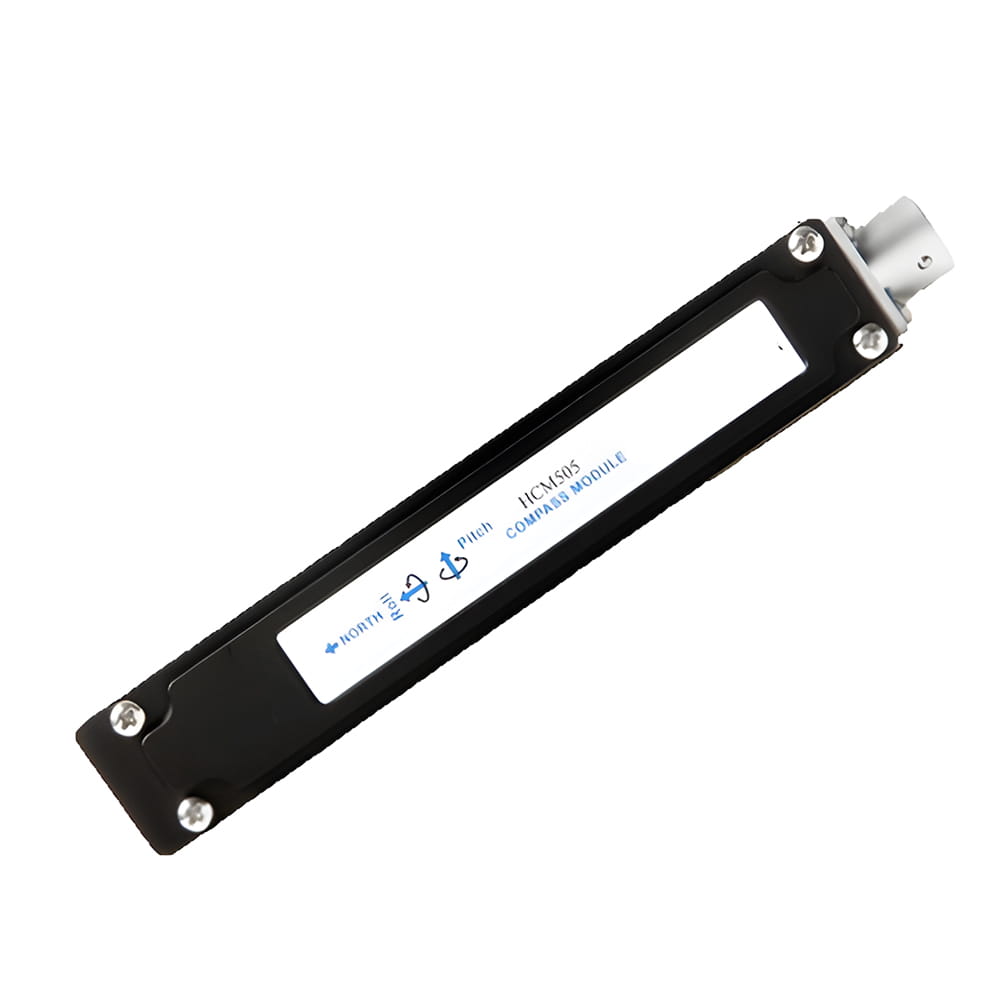

The performance of a 3D electronic compass directly affects the user experience of AR/VR systems. Modern devices such as C9000 series high-precision 3D electronic compass can maintain heading accuracy at extreme tilt angles of ±85°, which is achieved through three-axis accelerometers for heading compensation of a wide range of tilt angles. This anti tilt ability is particularly important for AR headsets and VR controllers, as users often experience significant head or hand movements during use. In addition, high-performance electronic compasses also use hard/soft iron calibration technology to reduce environmental interference and ensure measurement stability in metal environments.

Application of 3D Electronic Compass in AR Navigation and Outdoor Exploration

Virtual real registration is the core challenge of AR navigation, requiring seamless overlay of virtual navigation indicators to the correct position in the real scene.

By using the azimuth, elevation, and roll angles provided by the 3D electronic compass, the system calculates the rotation matrix and translation vector of the camera coordinate system relative to the world coordinate system, and constructs a transformation matrix from the world coordinate system to the camera coordinate system, providing users with intuitive directional guidance.

When the user turns on AR mode, the system captures the surrounding environment through the camera, and at the same time calls the direction data of the electronic compass and the position data of GPS to generate 3D navigation arrows that are integrated with the environment. The system can also support offline map function, relying on electronic compass and inertial navigation to continue providing directional guidance in remote areas without network signals, greatly expanding the applicability of AR navigation.

Application of 3D Electronic Compass in Indoor AR Navigation and Equipment Display

The indoor environment poses a serious challenge to traditional positioning technology due to the lack of GPS signals and the presence of complex magnetic interference sources. A high-precision indoor AR navigation system was constructed by combining a 3D electronic compass with IR-UWB ultra wideband positioning and image moment feature recognition. This innovative solution is the first to apply IR-UWB technology to 3D registration in augmented reality, achieving centimeter level positioning accuracy. The system consists of multiple technical modules: CMOS cameras capture real scenes; Helmet mounted displays display enhanced content; The IR-UWB module provides precise position tracking; Three dimensional electronic compass measures the viewing angle direction; Image moment feature module for identifying exhibits; Virtual scene generation module creates virtual content; The virtual real fusion module seamlessly integrates virtual content with real scenes.

Application of 3D Electronic Compass in Immersive VR Experience and Virtual Gimbal

The 3D electronic compass has demonstrated unique value in the field of virtual reality, especially in immersive experiences that require real directional mapping. By introducing real-world directional benchmarks into virtual environments, the electronic compass solves the problem of inconsistent direction perception in VR systems, significantly reducing users' dizziness and tendency to lose direction. In high-end VR systems, a 3D electronic compass is integrated with MEMS sensors to construct an omnidirectional tracking reference, enabling the virtual camera to accurately reproduce the true rotation angle and direction of the user's head.

The virtual gimbal based on electronic compass and MEMS system represents the technological innovation of VR interactive devices. This system does not require heavy mechanical structures. It measures three-dimensional geomagnetic field data through an electronic compass, and combines MEMS accelerometer and gyroscope data to calculate the relative azimuth and attitude angle of the gimbal, as well as the zoom and focus information of the camera lens.

Conclusion

The core value of electronic compass in AR/VR lies in providing reliable directional reference and spatial context, and its technological evolution is driving devices to upgrade from "visual immersion" to "multi sensory collaborative interaction". With the continuous emergence of new materials, algorithms, and sensors, the role of electronic compasses in AR/VR systems will become even more important, ultimately achieving the ultimate goal of seamless integration of virtual and real worlds.
