مقياس تسارع MEMS

AC-8

AC-8 quartz flexible accelerometer series is a small, high temperature resistant seismic type accelerometer. The product has excellent repeatability, starting performance, high temperature seismic resistance and high reliability characteristics, which can be used for both static testing and dynamic testing, and is also a standard vibration sensor. The product adopts unique miniaturization, high temperature resistant seismic design, advanced packaging process and special circuit, the output current of the product is proportional to the input acceleration, the user can select the appropriate sampling resistance through calculation, to achieve high precision output. And according to the user requirements of the built-in temperature sensor, can be used to compensate for the partial value and scale factor, to reduce the impact of environmental temperature.

  • الجزء رقم ، :

    AC-8
  • الطلب (موك) :

    1
  • وصف

1.      Product specification

#

Parameter

Unit

Value

1

K0

mg

≤±1

2

K0 temperature coefficient

μg/℃

≤±50

3

K0 one month stability

μg

≤20

4

K1

mA/g

≤1.05~1.3

5

K1 temperature coefficient

ppm/℃

≤±20

6

K1 one month stability

ppm

≤20

7

Second-order nonlinear coefficient

μg/g2

≤±10

8

Stability of second-order nonlinear coefficients (1 month)

μg/g2

≤10

9

bandwidth

Hz

400~800Hz

10

natural frequency

Hz

800~2500Hz

11

range

g

±50

12

Vibration

g,Hz

6.06g(20~2000Hz)

13

to attack

g,ms

100g,8ms,1/2sin

14

working temperature

-40~+85

15

Storage temperature

-55~+115

16

External dimensions

mm

Φ25.4mm×30mm

17

weight

g

≤80

18

threshold

μg

≤5

19

resolving power

μg

≤5

20

Noise

μA

≤10

21

Voltage

V

±15

22

Electric current

mA

≤20

23

Misalignment angle

mrad

≤±1

24

Temperature sensor

/

/

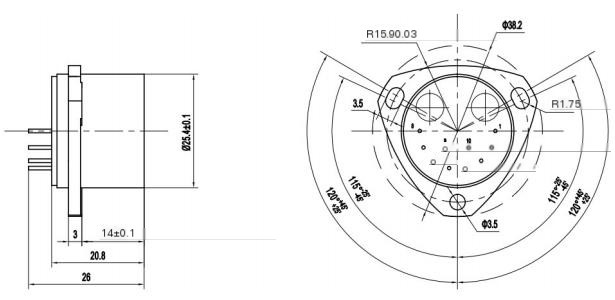

2.      Product dimension

Quartz Flexure Accelerometer Dimensions

Outline 1 for square
