ACM-1700 High Performance Single Axis MEMS Accelerometer ±10g~±200g 24-bit SPI Output Temp Sensor
The ACM-1700 series is a high-performance single axis MEMS accelerometer designed specifically for high-precision and high reliability acceleration measurement applications. This series offers four different range models, covering a wide measurement range of ±10g to ±200g, and supports customization according to customer needs. The sensor adopts 24 bit binary complement data output and communicates through SPI digital interface to ensure stable and accurate data acquisition even under complex working conditions. The ACM-1700 series has excellent performance, including high zero bias stability, low nonlinear error, and strong shock resistance. Its integrated temperature sensor further supports system level temperature compensation, improving measurement consistency across the entire temperature range. This series of products is suitable for multiple high demand fields such as aerospace, industrial control, navigation systems, mechanical monitoring, attitude measurement, structural health monitoring, etc. It is an ideal choice for inertial measurement, vibration analysis, and motion perception applications.
الجزء رقم ، :
ACM-1700الطلب (موك) :
1Product Series and Parameters
| Parameter | Acceleration | Acceleration | Acceleration | Acceleration | Unit |
| Model | ACM-1700-A | ACM-1700-B | ACM-1700-C | ACM-1700-D | |
| Sensitive axis | X-axis | X-axis | X-axis | X-axis | |
| Range | 46325 | 30-50 | 70-100 | 150-200 | g |
| Bandwidth（Adjustable） | 100 | 100 | 100 | 100 | Hz |
| Zero bias stability （10s；1σ） | <50 | <100 | <200 | <500 | ug |
| Zero bias monthly repeatability | 300 | 300-500 | 1000 | 1000 | ug |
| Zero bias temperature coefficient | <50 | <50 | <100 | <200 | ug/℃ |
| Zero bias temperature hysteresis | <2 | <3 | <5 | <10 | mg |
| Scale nonlinearity | <500 | <1000（@30g） | <2000（@70g） | <3000（@150g） | ppm |
| Scale monthly repeatability | <300 | <300 | <300 | <300 | ppm |
| Scale temperature coefficient | 10 | 10 | 10 | 10 | ppm/℃ |
| Second-order nonlinear coefficient | <100 | <100 | <100 | <100 | ug/g2 |
| Scale | 800000-200000 | 200000-150000 | 100000-80000 | 50000-40000 | Lsb/g |
| Startup time | <1 | <1 | <1 | <1 | s |
| Sampling frequency (Adjustable) | 2000 | 2000 | 2000 | 2000 | Hz |
| Electric shock | 10000 | 10000 | 10000 | 10000 | g |
| Non-electric shock | 10000 | 10000 | 10000 | 10000 | g |
| Vibration rectification error(6grms) | <0.4 | <0.15 | <0.05 | mg/grms | |
| Operating Temperature | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 | ℃ |
| Power supply | 5±0.25 | 5±0.25 | 5±0.25 | 5±0.25 | V |
| Current | <10 | <10 | <10 | <10 | ma |
| Size | 7.8 x 5.8 x 3 | 7.8 x 5.8 x 3 | 7.8 x 5.8 x 3 | 7.8 x 5.8 x 3 | mm |
Production process
Product dimension

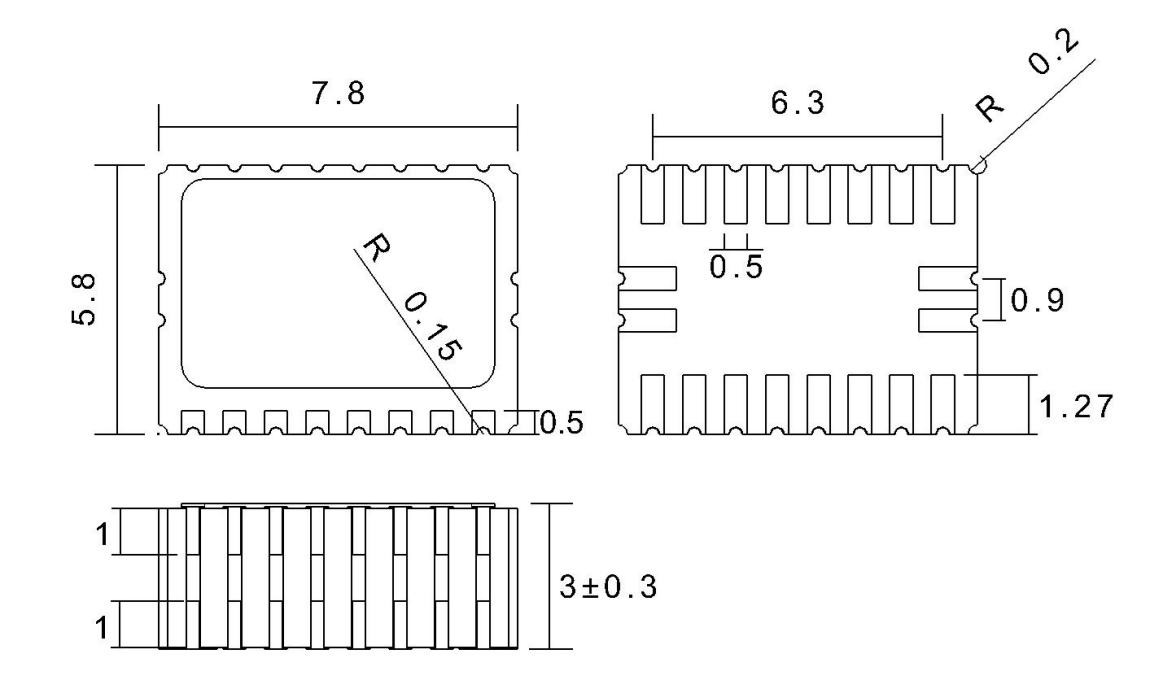

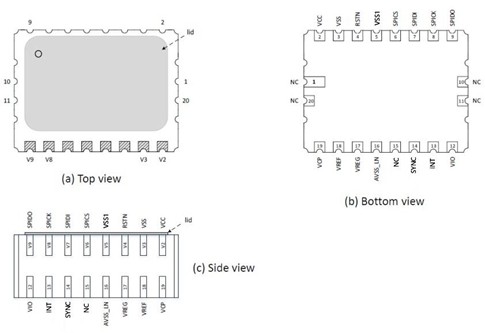

The ACM-1700 series accelerometer chip adopts a 20 pin ceramic package, and the package information is shown in Figure 1 below. The package size is shown in Figure 2 below.
Figure 1 Schematic diagram of packaging
